Patents for June 2025

USPTO Fastener Patents as Compiled from: United States Patent and Trademark Office (USPTO) by the editors of FTI

Wall System Fastener with Seal Member
US Patent 12313111
Published May 27, 2025
Inventors: Jason R. Wigboldy, Grand Rapids, MI, USA; and Mitchell B. Mahler, Grand Rapids, MI, USA
Assignee: Altenloh, Brinck & Co. US, Inc., Bryan OH, USA
A wall fastener assembly for use with a building wall system, with the wall fastener assembly
including a fastener and an elongated, semi-rigid seal member. The fastener includes a shaft
and a head, with the fastener configured to be secured to the wall system. The seal member
includes opposed first and second ends, and a center bore that extends along the length of the
seal member and is configured to receive the shaft of the fastener. When the fastener is
secured to the wall system the first end of the seal member is configured to compress against
a portion of the wall system, such as against a vapor barrier, to form a first seal and the
opposite second end of the seal member is configured to form a second seal to thereby seal
the wall fastener assembly against the wall system.

Multipurpose Screw
US Patent 12313108
Published May 27, 2025
Inventor: Matthew Augimeri, Sydney, Australia
Assignee: B.M.B. Investments Pty Ltd, Sydney, Australia
A multipurpose screw is provided. The screw comprises: a head having a tool engaging
formation, a self-drilling drill tip and a shank extending between the head and the drill tip. The
shank includes a threaded portion and an unthreaded portion. The threaded portion includes
a major thread extending from the drill tip. The ratio between the major diameter of the major
thread and the pitch of the major thread is from 1.2 to 2.4.

Tube Nut Socket Tool with Anti-Dilation Feature
US Patent 12311505
Published May 27, 2025
Inventor: Michael T. Selleck, St. Clair Shores, MI, USA
Assignee: Ford Motor Company, Dearborn, MI, USA
A tool includes an input portion, socket, arm and sleeve. The input portion receives input
torque about an axis. The socket is axially spaced apart from the input portion and configured
to rotate a nut about the axis. The socket defines first and second apertures that extend
through opposite ends of the socket into the socket cavity. A slot is open to the socket cavity
and extends axially between the first and second apertures through a perimeter of the socket.
The arm connects the input portion to the socket for common rotation. The arm does not
extend completely about the axis. The sleeve includes a lower portion rotatable about the
socket between a first position, in which the slot is open through a side of the tool, and a
second position, in which the lower portion closes the slot to inhibit spreading of the socket.

Set of Nosepieces for a Rivet Setting Tool
US Patent 12303967
Published May 20, 2025
Inventors: Yi Feng Lian, Bai Tang Town, China; and Jie Liang, Chu Jiang Town, China
Assignee: Milwaukee Electric Tool Corporation, Brookfield, WI, USA
A set of nosepieces are configured to attach to a rivet setting tool. The set of nosepieces
comprises a first nosepiece with a longitudinal bore having a first diameter and an O-ring
having a first color and a second nosepiece with a longitudinal bore having a second diameter
that is different than the first diameter and an O-ring having a second color that is different
than the first color.

Bolt for Centering Components Relative to Each Other
US Patent 12305688
Published May 20, 2025
Inventors: Masanao Kageyama, Tokyo, Japan; Fumiya Fujihara, Tokyo, Japan; and Tatsunori
Okubo, Tokyo, Japan
Assignees: Iwata Bolt Kabushiki Kaisha, Tokyo, Japan; and Honda Motor Co., Ltd., Tokyo, Japan
A bolt for joining a first component and a second component, the bolt being capable of
correcting a position of the second component with respect to the first component is provided.
A bolt is fitted in a first hole of a first component and in a second hole of a second component
in order to join the first component and the second component. The bolt includes a flange
part, a threaded part, a head part and a centering part. The centering part has a centering part
body and a plurality of blades. Each blade has an external-diameter increase portion in which a
distance from the axis to an outer edge gradually increases toward a direction opposite to a
tightening rotation direction of the bolt and a distance from the axis to the outer edge
gradually increases along an axial direction toward the flange part.

Screw Nail
US Patent 12305679
Published May 20, 2025
Inventors: Eiichi Watanabe, Tokyo, Japan; and Ryuta Kurasawa, Tokyo, Japan
Assignee: Max Co., Ltd., Tokyo, Japan
A screw nail includes a nail shaft portion extending along one direction and a head portion
whose diameter is enlarged along other direction orthogonal to an extension direction. A sharp
tip end portion is formed on one end side of the nail shaft portion, and the head portion is
formed at an end portion on the other end side. The nail shaft portion is formed with a screw
thread, and the head portion is formed with an engaging portion capable of engaging with a
rotary tool. A convex portion protruding along an axis direction of the nail shaft portion is
formed on an end surface of the head portion. A concave portion that is concave with respect
to the convex portion is formed between the convex portion and the engaging portion. A
virtual plane specified by vertexes of the convex portion is a plane orthogonal to the axis
direction.

Hybrid Screw with Compartmentalized Wedge Groove
US Patent 12292071
Published May 6, 2025
Inventor: Roland Schneider, Schlins, Austria
Assignee: Hilti AG, Schaan, Liechtenstein
A screw having a shank, wherein the shank has a tip end, a rear end and a longitudinal axis
extending through the tip end and through the rear end, wherein the tip end and the rear end
are opposite ends of the shank, and a screw thread, which is connected to the shank, and
which winds around the shank, wherein a wedge groove is provided in the shank, which wedge
groove winds around the shank and extends alongside at least a section of the screw thread,
wherein the wedge groove is delimited by a rearwardly tapered wedge flank for wedging a
grout shell surrounding the shank. At least one ridge is provided within the wedge groove,
wherein the ridge compartmentalizes the wedge groove.

Bolt Tensioner and Fastener Assemblies
US Patent 12292073
Published May 6, 2025
Inventor: Zoltan A. Kemeny, Chandler, AZ, USA
A fastener assembly includes a threaded shank having a first end and a second end, a securing
nut, a loading nut and a tensioning nut including a surface engaging portion. The securing nut
and the loading nut are threaded on the threaded shank. The securing nut is between the
loading nut and the second end. The loading nut is between the securing nut and the first end.
The securing nut and the loading nut are tightenable against each other. The tensioning nut is
threaded on the loading nut with the surface engaging section spaced radially outboard of the
securing nut.

Fastener and Sealant
US Patent 12289834
Published April 29, 2025
Inventors: Antoni Pujol, Valls, Spain; Luis Miguel Munoz Garcia, Valls, Spain; Angel Molinero
Benitez, Valls, Spain; Oscar Cano Salomo, Valls, Spain; and Ignacio Ferran, Valls, Spain
Assignee: Lear Corporation, Southfield, MI, USA
A fastener is provided with a pair of terminal ends with an intermediate region therebetween,
with at least one of the terminal ends being threaded. The fastener is further provided with a
sealant at least partially disposed on the intermediate region.

Friction Washer for Limited Slip Differential Clutch Pack
US Patent 12287011
Published April 29, 2025
Inventors: Kenneth Hunt, Orrville, OH, USA; and Matthew Fowler, Canton, OH, USA
Assignee: Schaeffler Technologies AG & Co. KG, Herzogenaurach, Germany
A friction washer for a limited slip differential is provided, with the friction washer including a
disk body having first and second opposing surfaces. The first and second opposing surfaces
define respective first and second contact planes and include recesses that extend into the disk
body from the respective first and second contact planes such that only a portion of the disk
body extends to the respective first and second contact plane. The recesses are defined by
partial spherical or partial cylindrical surfaces. This provides improved properties for holding
lubricating fluid circulated within the differential so that the hydrodynamic pressure created
between the friction surfaces provides a more consistent film or boundary layer of the
lubricating fluid for a more uniform coefficient of friction over various operating speeds and
pressures.

Bolt Fastening Structure and Anti-Vibration Device Including The Same
US Patent 12281668
Published April 22, 2025
Inventor: Chang Su Lim, Hwaseong-si, South Korea
Assignee: GNI Co., Ltd, Hwaseong-si, South Korea
Disclosed are a bolt fastening structure which is couplable and releasable at one side and
includes a fall prevention washer capable of preventing a bolt from falling, and an antivibration device including the same. By using an L-shaped bolt having a bent portion, even without assistance from below a substructure such as a grating plate, an operator above the
substructure can install an anti-vibration device on equipment alone. In addition, by using a fall
prevention washer coupled to an L-shaped bolt, a bolt can be prevented from falling below a
substructure when working on the substructure.

Self-Controllable Load Spring Washer
US Patent 12274862
Published April 15, 2025
Inventors: Nestor Rodriguez San Juan, Hamburg, NJ, USA; Evan Leibowitz, Linden, NJ, USA; and
Kayla Kaspar, Parsippany, NJ, USA
Assignee: Becton, Dickinson and Company, Franklin Lakes, NJ, USA
Provided herein is a load spring washer configured for use with a medical injection device,
having a main body having a proximal surface and a distal surface and one or more
protrusions extending proximally away from the proximal surface of the main body.

Fastener, Driver Bit and Punch Tool
US Patent 12276295
Published April 15, 2025
Inventor: Chao-Wei Lin, Tainan, Taiwan
Assignee: Kwantex Research Inc., Tainan, Taiwan
A fastener includes a screw head and a screw shank. The screw head has a top surface and an
inner surrounding surface. The inner surrounding surface has six curved portions and six
driven portions disposed in an alternating arrangement. Each of the driven portions has a
curved section connected to one of two adjacent curved portions and having a direction of
curvature opposite to that of the one of the two adjacent curved portions, a straight section
extending along a tangent line of an end of the curved section, and an extension section
connected between the straight section and the other one of the two adjacent curved portions.

Self-Drilling Screw Structure and Manufacturing Method Thereof
US Patent 12276296
Published April 15, 2025
Inventor: Yi-Chieh Shih, Kaohsiung, Taiwan
Assignee: Bi-Mirth Corp., Kaohsiung, Taiwan
The invention provides a self-drilling screw structure and a manufacturing method thereof,
wherein the manufacturing method includes: providing screw body, forming drill tail screw rod
section, forming concave neck portion, forming drill tail cutting edge and forming thread. The
self-drilling screw structure including a screw head portion and a screw rod portion, the screw
rod portion is sequentially provided with a threaded screw rod section, a drill tail screw rod
section and a drill bit screw rod section, the drill tail screw rod section has a rod diameter of
drill tail, a plurality of drill tail cutting edges and a plurality of drill tail chip discharge grooves,
the drill bit screw rod section is provided with a concave neck portion and the drill bit screw
rod section is protruded to form a plurality of drill bit cutting edges and the plurality of drill bit
chip discharge grooves.

Product Packaging for Washers and Method Of Use
US Patent 12275578
Published April 15, 2025
Inventor: George Davet, Chardon, OH, USA
Assignee: Solon Manufacturing Company, Chardon, OH, USA
Packaging for washer hardware products is provided along with a method of use. The
packaging includes a semi-closed box having a pair of lateral walls with retainer ends. The
packaging also includes a pair of end walls, one of which includes an opening for accessing the
central hole of a column of washers contained therein. The column can be removed by
inserting a rod through the central holes of the washers and lifting the rod upward while
holding the packaging down, thereby forcing the washers between the retainer beads and
through the open top of the box.

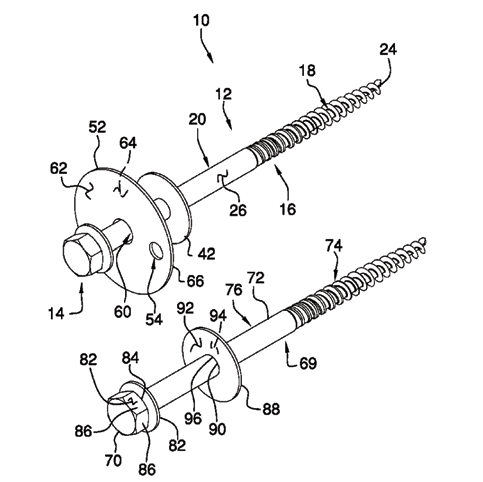

Ice Screw Assembly
US Patent 12270427
Published April 8, 2025
Inventor: Earl Flaman, Moosomin, CA, USA
An ice screw assembly includes a screw that has a head and a shaft. The shaft has a threaded
portion and an unthreaded portion and the threaded portion penetrates ice for securing the
screw into the ice. A first washer is secured around the screw and the first washer is positioned
on the unthreaded portion of the shaft to abut the ice when the screw is threaded into the ice.
A second washer is movably positioned around the screw and the second washer is positioned
between the first washer and the head. The second washer has an opening extending through
the second washer thereby facilitating an anchoring line of an ice shack to be attached to the
second washer to secure the ice shack to the ice.

Vibration Isolation Fastener System
US Patent 12274017
Published April 8, 2025
Inventors: Budy Notohardjono, Poughkeepsie, NY, USA; Richard M. Ecker, Poughkeepsie, NY,
USA; Surausch Khambati, Poughkeepsie, NY, USA; and Shawn Canfield, Poughkeepsie, NY, USA
Assignee: International Business Machines Corporation, Armonk, NY, USA
A fastener system includes a bar, a knob, a bushing and a washer. The bar extends along an
axis and includes a catch at one end and a head at the other end, where the head includes an
inclined face. The knob is configured to engage with the catch to prevent relative rotation
between the knob and the bar and to prevent separation of the knob and the bar along the
axis. The bushing is comprised of an elastomeric material that is positioned around the bar
between the catch and the head, where the bushing includes a flange facing the knob. The
washer is positioned around the bar between the bushing and the head, where the washer
includes an inclined face that contacts the other inclined face. The coefficient of friction
between the bushing and the washer is higher than the coeffi cient of friction between the
washer and the head.

Fastener Insert
US Patent 12258992
Published March 25, 2025
Inventors: Thomas Michael Semrow, Waukesha, WI, USA; and Albert J. Dapoz, Sterling Heights,
MI, USA
Assignee: Illinois Tool Works Inc., Glenview, IL, USA
Disclosed is a fastener insert configured to join two components. The fastener insert includes
an embeddable shank having an exterior surface and an axial opening. The embeddable shank
can be inserted, embedded, and locked into a first component. The exterior surface defines a
plurality of lobes extending around said embeddable shank. Each of the plurality of lobes has a
leading edge. In some examples, a plurality of grooves of the exterior surface form a chevron
groove pattern on each of the plurality of lobes.
